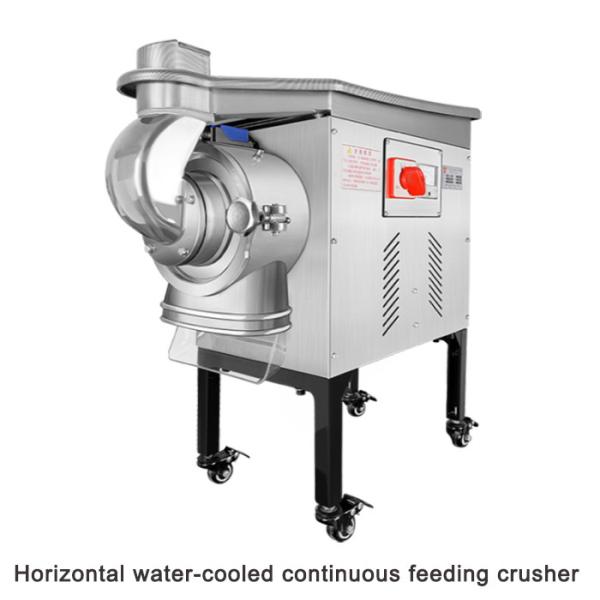

3300 Watt High Power Herb Grinder Machine Water Cooling
Product Description:
This product can grind various dry, oil-free, and non sticky medicinal herbs (including rhizomes, woody, or leafy herbs) into a uniform powder of 60-180 mesh. Different sieves can be used to achieve different fineness crushing effects. This machine can continuously feed materials and work continuously for a long time, with a one-time continuous working time of up to 3-5 hours.
Product advantages:
This crusher has a water cooling system, water and electricity separation, and is safe and reliable. Cooling water continuously flows through the heating area of the machine, taking away the heat. The crusher also has two crushing chambers. The material first enters the first stage crushing chamber and is crushed into small particles, then automatically enters the second stage crushing chamber. The high-speed swinging crushing hammer continuously hammers and crushes the material, instantly turning it into powder.
Machine working principle:
The machine is driven by the central shaft of the motor to rotate the high belt of the crushing hammer. When the material enters the first crushing chamber, it is first crushed into small particles, and then automatically enters the second crushing chamber. It is hammered and ground into fine powder with the grinding teeth, and enters the cloth bag through a mesh screen. The powder thickness can be adjusted by changing the mesh screen, and continuous feeding production can be achieved.
Application location:
Suitable for powder processing sites of all dry materials.
Parameter Table:
| Product Name | Horizontal water-cooled dual chamber crusher |
| model | DF-50B |
| voltage | 220V (customizable to 110V) |
| power | 3300 watts |
| yield | 1-55kg/h |
| fineness | 60-180 mesh |
| speed | 2840r/min |
| Net weight | 46Kg |
After sales time:
Free one-year warranty.
Design structure:
Random accessories:
